Open spreadsheet-agent RL framework

Spreadsheet-RL

Advancing Large Language Model Agents on Realistic Spreadsheet Tasks via Reinforcement Learning

  1. Banghao Chi1*
  2. Yining Xie1*
  3. Mingyuan Wu1*
  4. Jingcheng Yang1
  5. Jize Jiang1
  6. Zhaoheng Li1
  7. Shengyi Qian2
  8. Minjia Zhang1
  9. Klara Nahrstedt1
  10. Rui Hou2
  11. Xiangjun Fan2
  12. Hanchao Yu2

*Equal contribution. Mingyuan Wu served as project lead.

arXiv Code Dataset Model HF Daily

News

  • 🧪 Added SpreadsheetBench-Verified to the Spreadsheet-RL dataset, including verified spreadsheet artifacts and parser-specific parquet splits.
  • 🔄 Refreshed spreadsheet artifacts, removing samples with abnormal recalculation behavior, including excessive latency and memory usage; corresponding parquet splits are also updated.
  • 🚀 Released the Spreadsheet-RL-4B model checkpoint on Hugging Face at Spreadsheet-RL/Spreadsheet-RL-4B, the RL-trained Qwen/Qwen3-4B-Thinking-2507 spreadsheet agent used in the paper.
  • 🌐 The Spreadsheet-RL project page is now live at https://spreadsheet-rl.github.io/, with the paper overview, framework, results, resources, and citation.
  • 📄 The Spreadsheet-RL arXiv preprint is available at arXiv:2605.22642, and the paper is featured on Hugging Face Daily Papers.
  • 📦 Code and dataset release for Spreadsheet-RL. The code is available on GitHub at Spreadsheet-RL/Spreadsheet-RL, with training configs, Slurm scripts, the Excel reward service, SandboxFusion setup, and the verl integration. The dataset is available on Hugging Face at Spreadsheet-RL/Spreadsheet-RL, with parquet splits and workbook files.

Abstract

Spreadsheet systems such as Microsoft Excel and Google Sheets are central to modern data-centric workflows, but existing spreadsheet agents often rely on prompt engineering over general-purpose models and struggle with complex, multi-step tasks. Spreadsheet-RL is an RL fine-tuning framework for training specialized spreadsheet agents inside a realistic Microsoft Excel environment.

The framework combines scalable start-goal spreadsheet construction, a multi-turn Spreadsheet Gym with spreadsheet-native tools and sandboxed code execution, and outcome-based GRPO training. On SpreadsheetBench, Spreadsheet-RL improves Qwen3-4B-Thinking-2507 Pass@1 from 12.0% to 23.4%; on Domain-Spreadsheet, it improves Pass@1 from 8.4% to 17.2%.

5,925 released ExcelForum training tasks
23.4% SpreadsheetBench Pass@1 after RL
1,660 Domain-Spreadsheet evaluation rollouts
17.2% Domain-Spreadsheet Pass@1 after RL

Framework

Spreadsheet-RL links realistic data construction, faithful Excel interaction, and verifiable outcome rewards into one reproducible training loop.

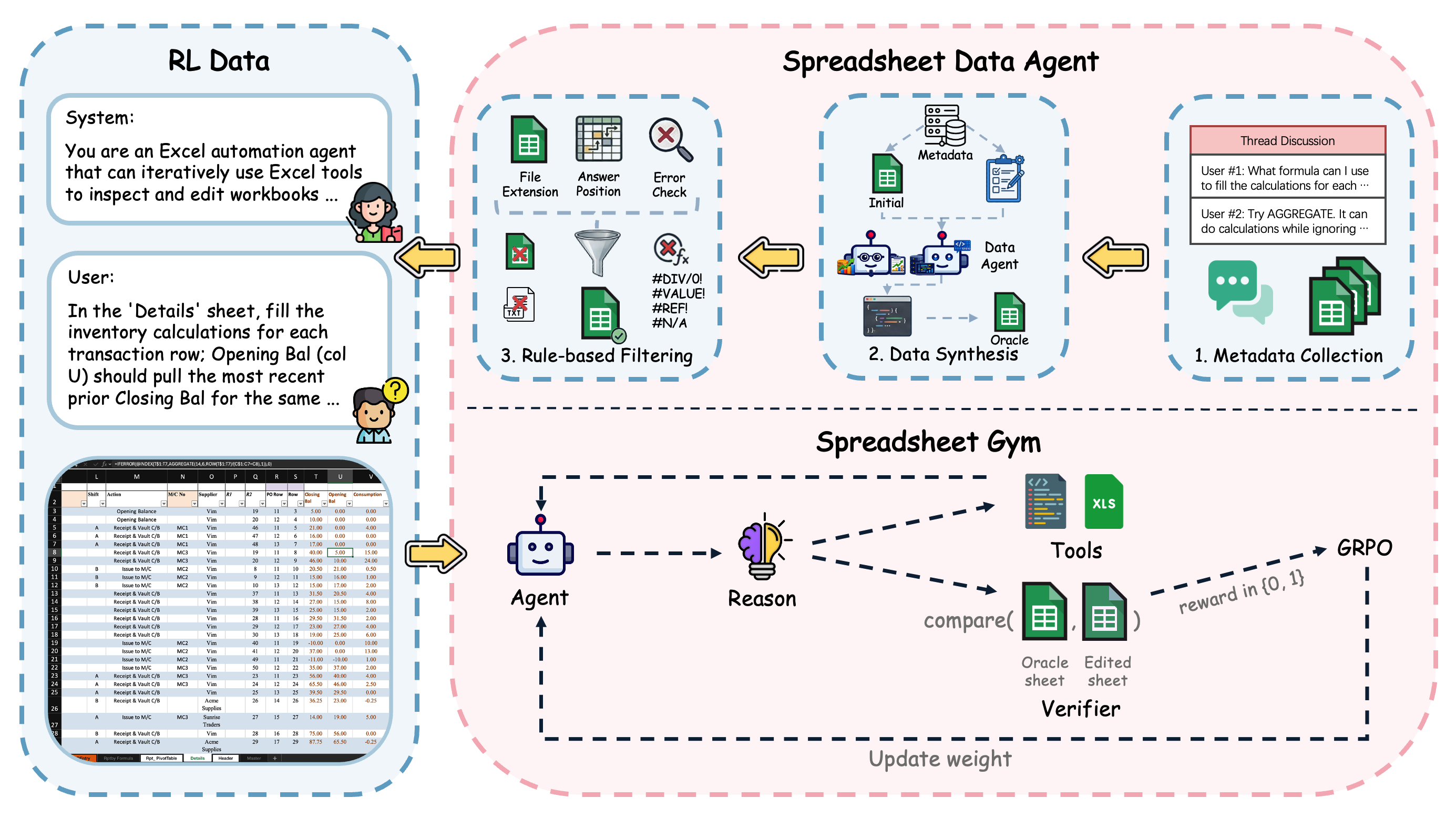

Spreadsheet-RL framework overview showing RL data, Spreadsheet Data Agent, Spreadsheet Gym, tools, verifier, and GRPO training.
Figure 1. Overview of Spreadsheet-RL. The data agent constructs paired initial and oracle workbooks; Spreadsheet Gym lets the policy interact with Excel through specialized tools; the verifier compares edited and oracle workbooks to provide outcome rewards for GRPO.

Spreadsheet Data Agent

Collects public ExcelForum threads after January 1, 2024, synthesizes oracle final workbooks with coding agents, and filters tasks through rule-based validation.

Spreadsheet Gym

Runs multi-turn agent rollouts in Microsoft Excel with isolated workspaces, spreadsheet-native tools, and SandboxFusion-backed code execution.

Outcome-Based RL

Uses an asynchronous Excel reward API to recalculate final workbooks and compare target ranges against oracle workbooks for GRPO training.

Results

Spreadsheet-native harnessing, richer tool access, and RL post-training each improve the same 4B open-source base model.

SpreadsheetBench Pass@1

Qwen3-4B-Thinking-2507 Setting Environment Pass@1
Base model Spreadsheet Gym 12.0
+ Spreadsheet-native interaction harness Spreadsheet Gym 15.6
+ Comprehensive spreadsheet-tool access Spreadsheet Gym 19.3
+ Spreadsheet-RL post-training Spreadsheet Gym 23.4

Domain-Spreadsheet Pass@1

Domain #Eval. Base RL
Finance-B59715.629.3
Finance-I3887.716.2
Finance-A1358.119.3
Supply Chain1801.15.0
HR1850.53.2
Sales861.25.8
Real Estate891.11.1
Overall1,6608.417.2

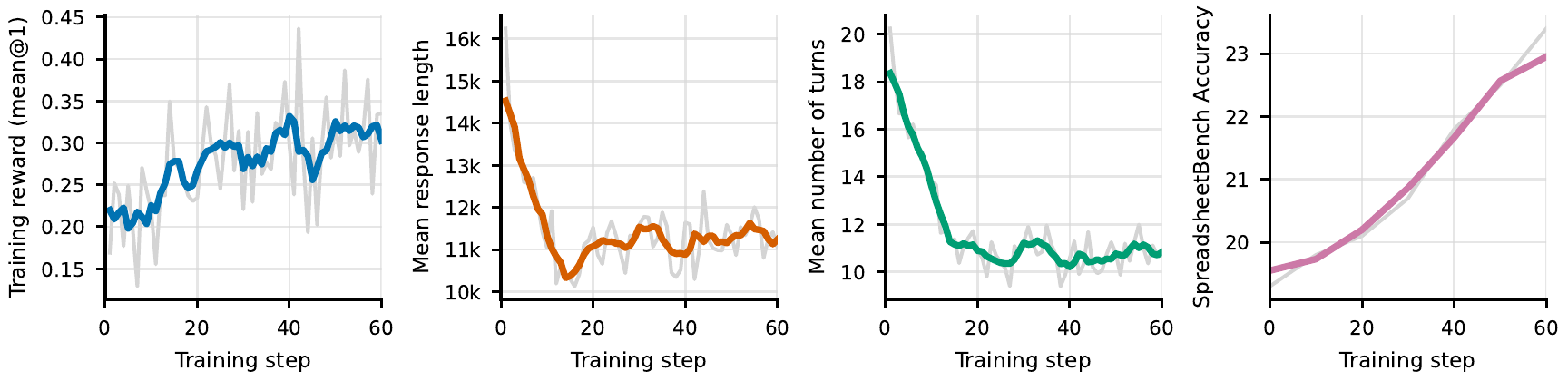

Training dynamics plots for reward, response length, turns, and SpreadsheetBench accuracy over 60 training steps.
Figure 2. RL training raises reward and validation accuracy while reducing rollout length and mean number of turns.

Domain-Spreadsheet

Domain-Spreadsheet is a domain-specific benchmark covering finance, supply chain management, human resources, sales, and real estate. It emphasizes professional analytical workflows such as comparable-company analysis, value-at-risk computation, inventory analysis, compensation benchmarking, and property valuation.

The released Hugging Face dataset contains parser-specific parquet files and a workbook archive with ExcelForum training tasks, SpreadsheetBench tasks, SpreadsheetBench-Verified tasks, and Domain-Spreadsheet tasks.

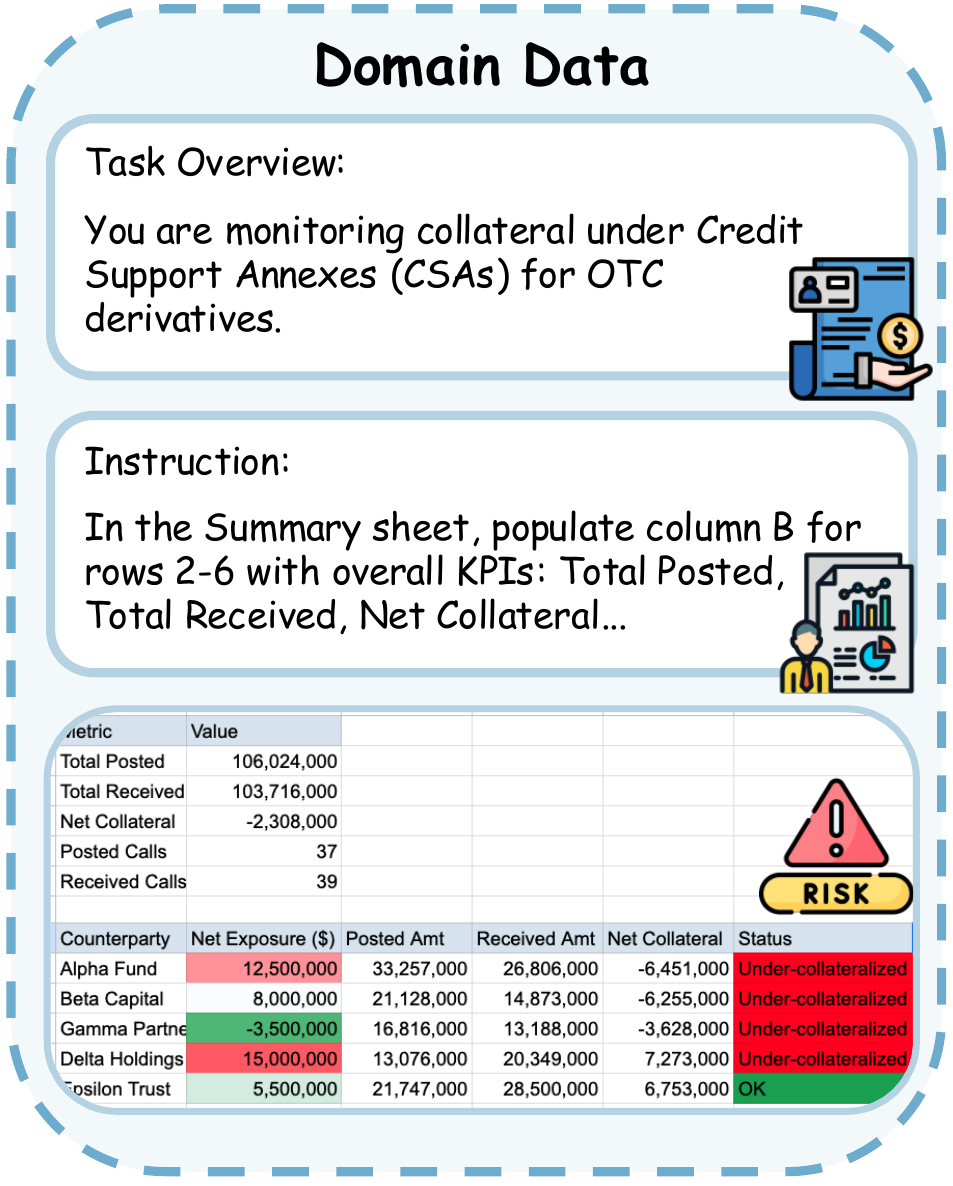

Example Domain-Spreadsheet finance task about monitoring collateral under credit support annexes.
Figure 3. Example finance workflow from Domain-Spreadsheet.

Resources

Paper arXiv:2605.22642
Code Training, tools, reward service, and verl integration
Dataset Parquet splits and workbook files
Model Spreadsheet-RL-4B checkpoint
HF Daily Papers Paper discussion and upvote page

Citation

BibTeX
@misc{chi2026spreadsheetrl,
  title         = {Spreadsheet-RL: Advancing Large Language Model Agents on Realistic Spreadsheet Tasks via Reinforcement Learning},
  author        = {Banghao Chi and Yining Xie and Mingyuan Wu and Jingcheng Yang and Jize Jiang and Zhaoheng Li and Shengyi Qian and Minjia Zhang and Klara Nahrstedt and Rui Hou and Xiangjun Fan and Hanchao Yu},
  year          = {2026},
  eprint        = {2605.22642},
  archivePrefix = {arXiv},
  primaryClass  = {cs.AI},
  doi           = {10.48550/arXiv.2605.22642},
  url           = {https://arxiv.org/abs/2605.22642}
}
